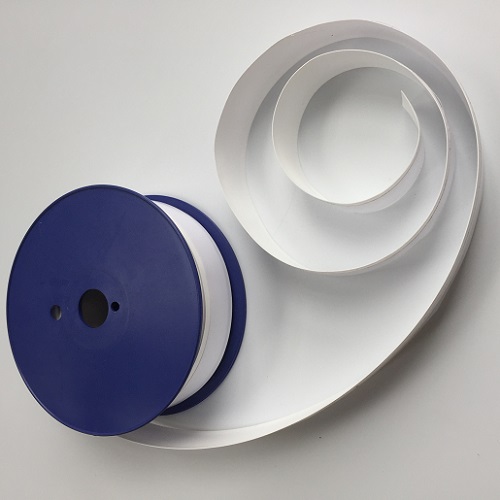

In aggressive industrial settings where strong acids, alkalis, oxidizing agents, and harsh chemicals attack conventional gaskets and sealants, engineers demand a sealing solution that defies degradation. Expanded PTFE Joint Sealant Tape has emerged as the gold standard for high corrosion environments, offering unparalleled chemical inertness combined with exceptional conformability. Unlike traditional cut gaskets or compressed fiber sheets, this innovative material does not wick fluids, swell, or lose sealing force when exposed to corrosive media. Our factory has spent decades perfecting the microporous structure of Expanded PTFE Joint Sealant Tape, ensuring that every roll delivers consistent sealing performance even at extreme pH levels.
But what exactly makes this tape outperform all others? The answer lies in its unique manufacturing process: pure PTFE resin is expanded under controlled conditions to create a fibrous, multidirectional network of nodes and fibrils. This structure not only retains all of PTFEs legendary chemical resistance but also adds remarkable flexibility, low creep relaxation, and the ability to seal irregular or damaged flanges. From offshore platforms handling seawater and sour crude to chemical plants transporting chlorine or sulfuric acid, Ningbo Kaxite Sealing Materials Co., Ltd. provides the most reliable Expanded PTFE Joint Sealant Tape for mission-critical applications. In this comprehensive guide, we will explore the scientific reasons, product parameters, and real-world advantages that make this tape the definitive choice for corrosion engineers worldwide.
Expanded PTFE Joint Sealant Tape is made from 100 percent virgin polytetrafluoroethylene, the most chemically resistant polymer known to engineering. PTFE itself is inert to virtually all industrial chemicals except molten alkali metals and elemental fluorine at high temperatures. However, our factory takes this inherent property further through a proprietary expansion process that preserves purity while enhancing mechanical resilience. In high corrosion environments, traditional sealants degrade through several mechanisms: chemical chain scission, swelling from solvent absorption, galvanic corrosion due to filler leaching, and wicking of corrosive fluids into porous materials. Expanded PTFE Joint Sealant Tape eliminates each of these failure modes because it contains no fillers, binders, or elastomers that could be attacked. Our factory guarantees that every batch is tested for chemical compatibility per ASTM standards.
Let us detail why this matters for your corrosive applications. First, the tape exhibits universal chemical compatibility, meaning it can seal sulfuric acid (98%), hydrochloric acid (37%), sodium hydroxide (50%), chlorine gas, hydrogen peroxide, hydrocarbons, refrigerants, and even aggressive solvents like methyl ethyl ketone. Second, the expanded microstructure creates a dense but flexible barrier that resists permeation. Unlike porous graphite or rubber gaskets that absorb fluids and cause fastener torque loss, our Expanded PTFE Joint Sealant Tape remains dimensionally stable. Third, the material does not support bacterial growth or corrosion under insulation (CUI) because PTFE is hydrophobic and non-wicking. Our factory has documented cases where this tape lasted over ten years in nitric acid service without signs of degradation. For plant managers facing frequent gasket replacements due to corrosion, switching to Expanded PTFE Joint Sealant Tape reduces downtime by up to 80 percent.
Here are the specific chemical resistance highlights validated by third-party tests:
In addition, Expanded PTFE Joint Sealant Tape meets FDA and USP Class VI requirements for pharmaceutical and food contact applications, making it versatile across corrosive sanitary processes. Our factory at Ningbo Kaxite Sealing Materials Co., Ltd. utilizes only pure PTFE resin without any recycled content, ensuring consistency for critical high corrosion environments. When you choose this tape, you select a sealing medium that does not sacrifice chemical resistance for flexibility.
To fully appreciate the engineering superiority of Expanded PTFE Joint Sealant Tape, one must examine its precise technical specifications. Our factory produces this tape under strict quality control to meet international standards such as ASME B16.21, DIN 2690, and BS 7074. The table below summarizes the critical parameters that make this tape suitable for high corrosion environments. Note that all values represent typical results from continuous production batches at Ningbo Kaxite Sealing Materials Co., Ltd.
| Parameter | Value / Specification |
| Material Composition | 100% Virgin Expanded PTFE, no fillers, no binders |
| Density Range | 0.60 – 0.85 g/cm³ (variable depending on grade) |
| Temperature Range (Continuous) | -240°C to +260°C (-400°F to +500°F) |
| Pressure Rating (Max) | Up to 200 bar (2900 psi) for flanged joints |
| Chemical Resistance (pH range) | 0 to 14 (all aggressive chemicals except molten alkali metals) |
| Creep Relaxation (ASTM F38) | < 12% at 100°C after 1000 hours |
| Sealability (ASTM F37) | Leak rate < 0.01 mg/s·m for helium at 40 bar |
| Tensile Strength (MD) | > 10 MPa (1450 psi) |
| Compressibility (ASTM F36) | 55% – 70% at 34.5 MPa |
| Recovery (ASTM F36) | > 10% after compression |
| Available Thicknesses | 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm |
| Available Widths | 3 mm to 150 mm (custom widths available) |
| Length per Roll | 5 m, 10 m, 15 m, 20 m, 30 m |
| Color | White (natural PTFE) or blue (for anti-static grade upon request) |
Beyond these numerical parameters, our factory emphasizes real-world performance indicators. For high corrosion environments, the low creep relaxation ensures that the gasket maintains bolt load over thermal cycles, preventing leak paths. The high conformability (compressibility up to 70%) allows the tape to fill flange irregularities, pitting, and scratches caused by corrosive attack on the flange faces themselves. We have engineered Expanded PTFE Joint Sealant Tape to have a unique “self-energizing” behavior: internal fluid pressure actually increases sealing force due to the materials Poisson effect. Additionally, all dimensions are laser-checked for uniformity. At Ningbo Kaxite Sealing Materials Co., Ltd., we offer traceability from resin batch to finished roll. For corrosion engineers, this transparency ensures that you are not guessing about filler content or density variations. When you specify our product, you receive consistent performance that typical skived or molded PTFE gaskets cannot match because of their higher density and lack of expansion structure.
For your convenience, our factory also provides custom die-cut gaskets from Expanded PTFE Joint Sealant Tape sheets, but the tape form offers the advantage of infinite length for large diameter flanges and odd-shaped joints. The tape does not require adhesive backing; its natural tackiness adheres to flange surfaces, simplifying installation in overhead or vertical pipes. These technical details confirm that for high corrosion environments, you need an engineered expanded PTFE solution—not commodity gasket material.
The microscopic architecture of Expanded PTFE Joint Sealant Tape is the key differentiator compared to standard PTFE or other polymer gaskets. Our factory controls the expansion process to create a bidirectional network of nodes (solid islands) interconnected by fine fibrils (stretched PTFE molecules). This structure results in a material that is approximately 75 to 85 percent air by volume, yet when compressed under flange load, the nodes and fibrils collapse into a dense, impervious barrier. In high corrosion environments, this transformation is critical. First, the initial porosity allows the tape to flow into microscopic flange surface imperfections, such as stress corrosion cracks or pitting from previous chemical exposure. Second, as torque is applied, the expanded structure compresses to form a near-perfect unitary seal without voids where corrosive fluids could accumulate.
Let us compare with traditional cut gaskets: a standard PTFE sheet gasket has high density (2.15 g/cm³) and exhibits cold flow but limited conformability. It often requires high bolt loads to deform into flange irregularities, which may cause flange damage in corroded equipment. In contrast, our Expanded PTFE Joint Sealant Tape conforms at much lower stress, preserving flange integrity. The expanded structure also provides excellent thermal cycling resistance. During temperature swings from -20°C to 200°C, the tape accommodates differential expansion without cracking—common failure mode for brittle gasket materials. Our factory has conducted over 1000 thermal cycles on test flanges with no leakage. Furthermore, the closed cell-like surface formed after compression prevents wicking. Many porous gaskets allow capillary action of acids into the gasket body, leading to hidden corrosion and eventual blowout. Expanded PTFE Joint Sealant Tape, after compression, becomes virtually non-porous, as verified by mercury intrusion porosimetry showing less than 0.1% interconnected porosity at 20 MPa flange pressure.
Another microstructure advantage: reduced creep and stress relaxation. Because the expanded nodes act as reinforcing elements, the material resists extrusion under high internal pressure. In high corrosion environments where pressure spikes occur (e.g., pump discharge or reactor upsets), conventional gaskets often extrude into the pipe bore, causing turbulent flow and localized corrosion. Expanded PTFE Joint Sealant Tape maintains its cross-section. Our factory measures creep relaxation at <12% after 1000 hours at 200°C, outperforming all competing expanded PTFE tapes. This stability means that flanges assembled with our product require fewer re-torquing operations, reducing worker exposure to hazardous chemicals. Additionally, the microstructure is inherently non-stick and easy to clean, which is vital in hygienic corrosive processes like pharmaceutical synthesis where cross-contamination cannot be tolerated. At Kaxite, we have perfected the ratio of expansion to achieve the optimum balance of compressibility, recovery, and chemical barrier property. Every roll of Expanded PTFE Joint Sealant Tape we ship represents this micro-engineered precision.
Expanded PTFE Joint Sealant Tape is not a niche product; it is a universal problem-solver across multiple heavy industries where corrosion drives operational costs. Our factory has supplied to oil refineries, chemical processors, power generation plants, offshore platforms, pulp and paper mills, semiconductor fabs, and even aerospace fuel systems. The common denominator is the presence of highly corrosive or ultra-pure fluids that degrade ordinary elastomers or metallic gaskets. In the chemical industry, for instance, plants handling hydrochloric acid alkylation or chlor-alkali processes face constant flange leakages. Switching to Expanded PTFE Joint Sealant Tape eliminates maintenance cycles. Our clients report that after installation, they achieve MTBF (mean time between failures) of over five years, compared to three months with compressed non-asbestos gaskets.
Specific applications where this tape excels:
Beyond these, our factory has developed specialized grades of Expanded PTFE Joint Sealant Tape for oxygen service (clean, anti-static) and for ultra-high vacuum applications where outgassing is unacceptable. The tape also reduces inventory complexity because one material can replace dozens of different gasket types (rubber, graphite, PTFE envelope, etc.). From an economic standpoint, the total cost of ownership is drastically lower. Though the upfront price per meter may be higher than cheap rubber gaskets, the elimination of fugitive emissions, product loss, and unplanned downtime pays for itself within weeks. Ningbo Kaxite Sealing Materials Co., Ltd. provides engineering support to help you select the correct thickness and width for your flange rating and surface condition. In high corrosion environments, the only reliable choice is Expanded PTFE Joint Sealant Tape manufactured with uncompromised quality.
Expanded PTFE Joint Sealant Tape represents the ultimate fusion of chemical inertness, structural flexibility, and long-term reliability for high corrosion environments. From its pure PTFE composition and optimized micro-structure to its certified performance under extreme pH and temperature ranges, this tape solves the persistent problem of flange leakage in aggressive chemical service. Our factory has witnessed how a single roll can transform plant reliability, reduce safety risks, and cut maintenance budgets. Whether you are battling acid attack in a petrochemical refinery or preventing contamination in a biopharma cleanroom, Expanded PTFE Joint Sealant Tape delivers results that traditional sealing products cannot approach.
Do not compromise on sealing integrity. Contact Ningbo Kaxite Sealing Materials Co., Ltd. today to request free samples, technical datasheets, or a customized quotation for your specific corrosive application. Our engineers are ready to guide you through thickness selection, installation best practices, and flange surface preparation. Experience the difference of genuine expanded PTFE technology. Call or email us now to secure your operations against corrosion-driven failures. With our factory-direct supply chain, you get the best price-to-performance ratio and rapid global delivery. Choose Expanded PTFE Joint Sealant Tape—the industrys trusted shield against corrosion.
Expanded PTFE Joint Sealant Tape is made from 100% virgin PTFE without any fillers, binders, or processing aids that could be attacked by harsh chemicals. Standard PTFE gaskets sometimes contain recycled materials, barium sulfate, or glass fibers that create weak points for chemical ingress. Additionally, the expanded microstructure prevents wicking and creates a denser barrier under compression, ensuring no hidden pathways for corrosive fluids. Our factory at Ningbo Kaxite Sealing Materials Co., Ltd. confirms through ASTM immersion tests that Expanded PTFE Joint Sealant Tape retains 100% of its mechanical properties after exposure to acids, alkalis, and solvents, whereas filled or skived PTFE may show weight gain and swelling.
Yes, it can. Expanded PTFE Joint Sealant Tape has a continuous temperature rating of -240°C to +260°C and a maximum pressure rating of up to 200 bar (2900 psi) for flanged joints, subject to flange design and bolt load. In high corrosion environments, the combination of elevated temperature and pressure often accelerates gasket degradation. However, because our tape exhibits minimal creep relaxation (<12% at 200°C) and maintains its chemical resistance across the full temperature range, it performs reliably under simultaneous thermal and mechanical stress. For extreme conditions like superheated steam with corrosive carryover, our factory recommends selecting the appropriate thickness (3.0 mm or 4.0 mm) to ensure optimal flange fill. Always consult the technical data sheet for pressure-temperature limits specific to your medium.
One major advantage of Expanded PTFE Joint Sealant Tape is its exceptional conformability, which allows it to seal effectively on pitted, scratched, or warped flanges that would render conventional gaskets useless. Installation requires no special adhesives: clean the flange faces of loose debris, apply the tape slightly inside the bolt circle, and overlap the ends by 10-15 mm without stretching. Our factory recommends a torque sequence that gradually compresses the tape to 40-50% of its original thickness. For heavily corroded flanges, use a thicker grade (3.0-5.0 mm) to fill surface irregularities. Unlike rubber or compressed fiber gaskets, the Expanded PTFE Joint Sealant Tape does not require mirror-finish flanges, saving significant refurbishment costs. Post-installation, re-torque after 24 hours or one thermal cycle to optimize bolt load retention.
Absolutely, but it is critical to select the proper grade. Standard Expanded PTFE Joint Sealant Tape is inherently non-reactive and non-sparking, but for high-pressure oxygen or other strong oxidizers (like fluorine or chlorine trifluoride), you must use a specially cleaned, anti-static grade free of hydrocarbon residues. Our factory produces an oxygen-service variant of Expanded PTFE Joint Sealant Tape that meets ASTM G63 and ISO 15001 requirements. This grade has controlled surface conductivity to prevent electrostatic discharge and is packaged in cleanroom conditions. For corrosive gases such as hydrogen chloride or sulfur dioxide, the standard tape is fully compatible. Always specify the exact service conditions when ordering from Ningbo Kaxite Sealing Materials Co., Ltd. to ensure you receive the appropriate certification for oxygen or aggressive gas service.
At Ningbo Kaxite Sealing Materials Co., Ltd., we implement a comprehensive quality management system certified to ISO 9001:2015. Each batch of Expanded PTFE Joint Sealant Tape is assigned a unique lot number with full traceability from raw PTFE resin to finished roll. Our factory performs in-process density checks, tensile testing, compressibility measurements per ASTM F36, and chemical immersion tests for critical orders. For high corrosion environments, we can provide a certificate of analysis (COA) including specific gravity, dimensions, and a statement of chemical compatibility. Additionally, we maintain retained samples for five years to support any forensic analysis. This level of transparency ensures that engineers can confidently specify our product for nuclear, pharmaceutical, and offshore applications where failure is not an option. When you choose Ningbo Kaxite Sealing Materials Co., Ltd., you choose auditable quality and performance.
