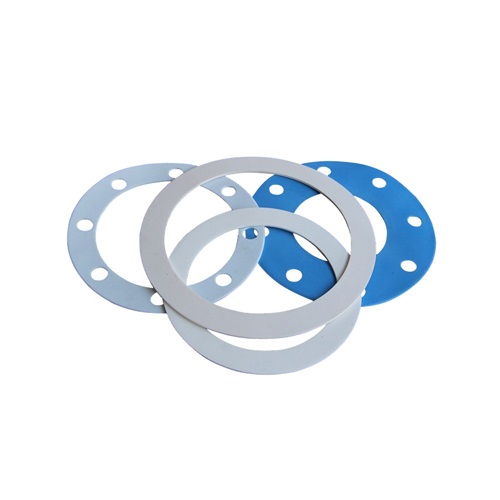

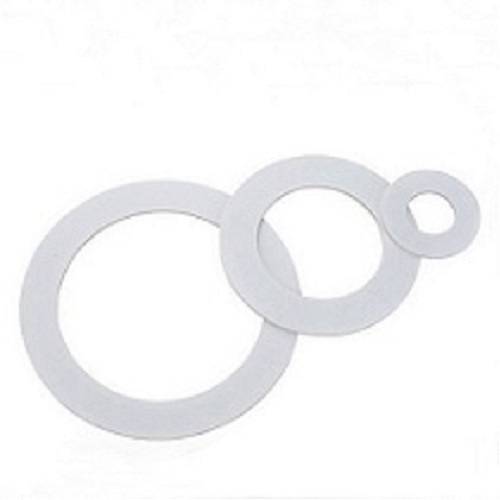

PTFE Gasket

PTFE is an acronym for polytetrafluoroethylene.It is utilized as a sealing material because it is able to withstand significantly more aggressive chemical environments, (including highly oxidizing environments).

PTFE provides excellent thermal insulation and is the most chemically resistant plastic known. It is unaffected by most corrosive liquids, vapors and gases, and conforms to both FDA and AMS specifications.

However its operating temperature, pressure and mechanical performance can be inferior to standard non-asbestos or graphite gasket materials.

View as

  • PTFE gasket sheet with silica filler is a high performance, silica filled PTFE sheet material designed for use with strong acids, solvents, hydrocarbons, and other aggressive media. You can order quality PTFE gasket sheet with silica filler from Kaxite.

  • Filled PTFE is made of virgin PTFE resin and fillers such as glass fiber to increase its mechanical and sealing properties. It is first formed into a billet, and then sheets of are cut or skived from the billet. Modified PTFE gasket are in order to meet the needs of customers to different working conditions, and reduce the cost. Kaxite research and design the modified PTFE gaskets.

  • Kaxite expanded PTFE is virgin PTFE to which a stress resistance has been added by means of molecular rearrangement during manufacturing. This process ensures that the molecular chains from which the PTFE is constructed,do not arrange themselves into set patterns.This means that expanded PTFE possesses no structural weakness (grain) and expands and contracts equally in all directions. Because no additives are required,expanded PTFE also possesses the unique chemical resistance of virgin PTFE .

  • Kaxite Virgin PTFE is simply pure PTFE resin that is sintered to form a solid material. Compared to filled PTFE and expanded PTFE,it is the least expensive, and some of its mechanical properties are inferior to the other two.

 1
KAXITE is one of the leading manufacturers and suppliers of various PTFE Gasket products in China. We have skillful and experienced workers in our factory. Now take action to wholesale quality PTFE Gasket made in China with us.
